Preprint, 18th Conference on Severe Local Storms, Amer. Met. Soc.,
San Francisco, CA, Feburary. 1996

REALTIME NUMERICAL PREDICTION OF STORM-SCALE WEATHER
DURING VORTEX '95: GOALS AND METHODOLOGY

Kelvin K. Droegemeier+,1,2, Ming Xue1, Adwait Sathye1, Keith Brewster1,
Gene Bassett1,2, Jian Zhang1, Yuhe Liu1, Min Zou1, Andrew Crook3, Vince Wong1,
Richard Carpenter4, and Craig Mattocks5

1Center for Analysis and Prediction of Storms* and 2School of Meteorology
University of Oklahoma
Norman, OK 73019
3National Center for Atmospheric Research*, Boulder, CO 80307
4Center for Computational Geosciences
University of Oklahoma
Norman, OK 73019
5NOAA Atlantic Oceanographic and Meteorological Laboratory Miami, FL 33149

1. INTRODUCTION

The Center for Analysis and Prediction of Storms was established at the University of Oklahoma in 1988 as one of the National Science Foundation's first 11 Science and Technology (S&T) Centers. Its mission is to demonstrate the practicability of storm-scale numerical weather prediction and to develop, test, and validate a regional forecast system appropriate for operational, commercial, and research applications. Its ultimate vision is to make available a fully functioning, multi-season storm-scale NWP system around the turn of the century.

Numerical prediction models were first used in operational forecasting about four decades ago, with spatial resolutions of order 200 km the norm. Since that time, such models have grown in sophistication and complexity, and advances in computer technology have led to spatial resolutions as dense as 30 km over domains several thousand kilometers on a side. Despite this move toward representing smaller scale weather, operational models continue to lack the spatial resolution and input data required to capture highly energetic, sometimes destructive and short-duration events such as thunderstorms, snow bands and downslope windstorms.

In contrast to the trend at operational centers toward increasingly higher spatial resolution, CAPS is attacking the NWP problem from the other direction, i.e., beginning with the explicit representation of storm-scale events using model resolutions of order 1 km and input data provided primarily by scanning Doppler radars. This philosophy requires that the somewhat larger-scale or background environment also be properly represented, and thus CAPS' work extends slightly into the meso- regime as well.

As a step toward meeting its objectives in storm-scale NWP, and to draw the operational community more closely into its development efforts, CAPS began in 1993 a series of realtime operational tests (CRAFT, or Cooperative Regional Assimilation and Forecast Test) of its prediction system (ARPS, or Advanced Regional Prediction System; Xue et al. 1995) in collaboration with the Norman NWSFO and Experimental Forecast Facility (EFF). During the spring 1993 and 1994 severe weather seasons, these consisted of 4-hour predictions in which the 1 km resolution ARPS was initialized using a single forecast sounding to determine the basic mode of convective development over specified regions of Oklahoma and north Texas (Janish et al. 1994). These tests, patterned after Project STORMTIPE (Brooks et al. 1993), were extremely valuable because they introduced CAPS to the constraints and challenges of an operational environment, provided a direct mechanism for bringing forecaster input into CAPS, and brought to light problems with the ARPS that had, until that time, been unrecognized in a controlled research setting. However, they were still simple relative to the storm-scale prediction concept envisioned by CAPS (i.e., horizontally inhomogeneous model initial conditions, boundary conditions provided by larger-scale models, and initial conditions based on Doppler radar data).

A more realistic operational experiment was conducted by CAPS as part of the VORTEX '95 field program (Rasmussen et al. 1994). Specifically, from late-April through early June, the ARPS was run on a nearly daily basis with fairly complete physics at two horizontal resolutions: an outer mesoscale domain of 15 km spacing and a nested, storm-scale domain of 3 km spacing. The coarse grid prediction was initialized from the NMC Rapid Update Cycle (RUC) forecast valid at 18Z, while the fine mesh was initialized using the RUC and OLAPS (see section 3). Six hour forecasts were produced for both domains.

We describe herein the goals and methodology of the operational tests, including the porting of ARPS to and its performance on the Cray T3D parallel supercomputer. A companion paper in this volume (Xue et al. 1996) presents the operations summary and results from selected cases.

2. GOALS

The spring 1995 operational tests, the first conducted by CAPS to date in a true NWP mode, were designed to achieve the following goals, listed in arbitrary order: a) to provide experience to, and obtain feedback from, operational forecasters using a nonhydrostatic storm-scale model; b) to evaluate model skill and develop tools for doing so given the spatial and temporal intermittency of storm-scale weather; c) to develop forecast products appropriate for the storm-scale; d) to gain practical experience dealing with the logistics of operational NWP, including data acquisition, formatting and communication, high-performance parallel computing, and product generation; and e) to solicit information about ARPS' forecasts from local, national, and international scientists and students in the government, private, and educational sectors by making the model output available on the World Wide Web.

3. OPERATIONAL CONFIGURATION

Two 6-hour forecasts were made with the ARPS each operational day from 26 April through 8 June 1995. The first utilized 15 km horizontal grid resolution over an area 1200 x 1200 square km centered over western Oklahoma (Fig. 1). The vertical grid resolution varied over 35 levels from 100 m near the ground to 900 m at the top of the domain. Initial and

Figure 1. Configuration of the ARPS prediction grids used in the VORTEX '95 operational tests. The 3 km resolution inner domain, nested one-way within the 15 km resolution domain, was repositioned daily based on the anticipated location of severe weather.

boundary conditions were provided by NMC's 60 km resolution Rapid Update Cycle (RUC) forecast valid at 18Z the same day. The initial fields were interpolated in space directly onto the ARPS grid (which used the RUC terrain), while the boundary conditions were interpolated linearly in time using 3-hourly RUC data. This version of the ARPS used the Kuo cumulus parameterization scheme, a surface energy budget and 2-layer soil model package, a 1.5 order TKE turbulence parameterization, and stability-dependent surface momentum, heat and moisture fluxes.

The second forecast utilized 3 km horizontal grid spacing over an area 336 x 336 km, the location of which was based on the daily severe weather target area as determined by VORTEX forecasters (Fig. 1). This domain was nested one-way within the 15 km resolution domain described above, and used the same physics and vertical grid except with the Kuo scheme replaced by the Kessler warm-rain microphysical parameterization. For most days during the latter half of the experiment, the initial conditions for the storm-scale domain were provided by the 10 km resolution Oklahoma Local Analysis and Prediction System (OLAPS; Brewster et al. 1994; McGinley 1995; Fig. 1), which included data from several sources, including the Oklahoma Mesonet. [See Albers 1995 for a description of the LAPS wind analysis.]

The detailed operational flowchart for the VORTEX '95 predictions is shown in Fig. 2. Note that the 15 km resolution ARPS was initialized from a 6-hour forecast (RUC) that was valid at 18Z but available at 16Z, around the time the ARPS model was started! Hourly data dumps from this 15 km grid forecast were used as boundary conditions for the inner 3 km resolution run. WSR-88D data were handled through the remapper described by Brewster et al. (1995), and all other observations interfaced to the prediction system through the OLAPS. Conversion of data to the ARPS coordinate system was controlled by a general piece of software called EXT2ARPS (i.e., convert external file to ARPS format), which also performs a 3-D mass continuity adjustment on the interpolated wind fields.

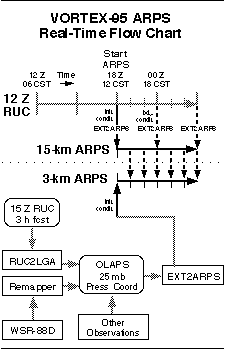

Figure 2. Data flow chart for the realtime ARPS predictions made during VORTEX '95. Solid (dashed) arrows indicate data flow for initial (boundary) conditions. Adapted from Brewster et al. (1995).

The model execution and product generation for the entire forecast cycle was automated through the use of UNIX shell scripts and cron tabs. Each day, a CAPS "duty scientist", which was often a graduate or undergraduate student, monitored the forecast process, which from start to finish took about 3 hours.

4. EVALUATION AND ARCHIVAL

The ARPS forecasts were evaluated in a variety of ways by scientists and students around the world. Locally, the ARPS gridded output was converted to GEMPAK format and shipped at hourly intervals to the NOAA Storm Prediction Center (which, in 1995, was located at the National Severe Storms Laboratory) and the co-located VORTEX Operations Center. There, forecasters could use tools such as NTRANS to create selected graphical products for evaluation.

Several 4-panel images of selected fields for both the 15 and 3 km resolution runs were also automatically created and shipped to the CAPS World Wide Web Home Page (http://wwwcaps.uoknor.edu/Forecasts). This allowed local students to easily compare the forecasts with other data (e.g., OLAPS) in realtime, and was also a convenient mechanism for obtaining input from interested scientists around the world.

All data collected during VORTEX, including the OLAPS analyses, are being archived by the NCAR Office of Field Programs Support (OFPS). During each ARPS forecast, history dumps of all raw model fields were produced at hourly intervals, and these data, along with all initial and boundary conditions, source and object code, and the model executable, were saved on the mass storage system at the Pittsburgh Supercomputing Center. At this time, the forecasts have not been archived at the OFPS.

5. COMPUTATIONAL STRATEGY AND MODEL PERFORMANCE

Two different computers were used for the operational tests, both located at the Pittsburgh Supercomputing Center. The first, a 16-processor Cray C90, was used for the 15 km resolution outer domain predictions. Two processors of this machine were dedicated to the operational tests each day, and a 6 hour forecast took from 17 to 20 minutes of wallclock time to complete. This code required 22 million words of central memory (domain of 83 x 83 x 35 points), and executed at around 400 megaflops per processor, or approximately 40% of peak machine performance. Due to the many changes made to the ARPS just prior to the tests, a complete optimization was not performed. Subsequent benchmark timings showed that the ARPS can execute at 450 to 500 megaflops per processor on the C90.

The 3 km storm-scale domain was executed on a 256 node dedicated partition of the massively parallel Cray T3D supercomputer. This machine supports a distributed memory that is globally addressable on a 3-D torus network, and to make effective use of its power, the ARPS was converted to a distributed memory model using the Parallel Virtual Machine (PVM) message passing library (see Droegemeier et al. 1995 and Johnson et al. 1994 for details on data decomposition).

In order to avoid maintaining more than one version of the ARPS, the message passing calls were fused into the original vector/sequential code as standard comment statements written in plain English (e.g., "cMP bc 2d real"). A translator developed at CAPS by scientific programmers Norman Lin and Adwait Sathye was then used to automatically convert these comments into appropriate PVM or MPI (message passing interface) syntax. The translator, written as a general tool, bases its coding decisions on the execution platform (specified by the user), and thus all of the local modifications (or "hooks) are provided by the translator (e.g., for switching between the SPMD and master-slave paradigm if desired). Because most parallel platforms lack I/O support, each process created by the PVM library read and wrote its own individual files, and tools were created at CAPS to automatically split and merge these files as needed.

Although code synchronization calls, calls for global operations (e.g., sum, max, min), and initialization calls (e.g., to obtain processor ID's) were coded by hand, we estimate that 80% of the ARPS conversion was handled automatically by the translator developed at CAPS.

The T3D code required 36 million words of memory (112 x 112 x 35 points), and executed during the operational tests at a speed of 11 megaflops per processor, which is about 7% of peak machine performance for the Alpha EV4 chip used. This translated into about 75 minutes of wallclock time to generate a 6 hour forecast. We attribute this rather low code performance (most tuned fluid dynamics codes run at about 15 to 20 megaflops per processor on the T3D) to the relatively small cache (1 kiloword) available on the Alpha chip, the lack of any optimization in support of the operational tests, and the relatively slow speed of PVM (improvements have since been made). Recent tests with an MPI version of the ARPS show much better performance on several platforms, and we anticipate much better statistics in our subsequent field evaluations.

The memory requirements for these tests were well within the memory available on the Cray C90. However, we chose to run on the T3D in 1995 in order to prepare ourselves for the much larger problem sizes that will only be accommodated on such machines in the future.

6. THE FUTURE

Overall CAPS views this operational experiment as highly successful, both scientifically and technologically. The model performed surprisingly well on a number of cases (see Xue et al. 1996 for examples), even though no convection was present in the initial state provided by the RUC and no single-Doppler velocity retrievals or data assimilation were employed. The former situation, which resulted in a time lag between the model forecast and the real atmosphere, will be remedied in spring 1996 when a diabatic initialization scheme that uses radar reflectivity to diagnose latent heating is added. Additionally in 1996, as shown in Fig. 3, CAPS hopes to begin using WSR-88D wideband data in realtime, at least from the KTLX radar, and bring the resolution of the two domains down to 10 and 2 km. The ARPS initial state will be generated through a sequence of iterations between the ARPS and a new analysis system written specifically for its coordinate framework. This new system, components of which will be taken from LAPS, will provide a higher-resolution and more data rich set of fields than is available only from the RUC forecast.

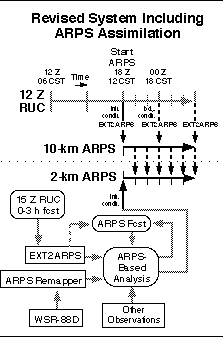

Figure 3. Projected data flow schematic for the realtime ARPS predictions during 1996.

CAPS will continue its series of operational tests beyond 1996, with increasing emphasis on wintertime weather. Instead of attempting to run continuously for long periods of time, a number of "operational periods" will be identified during each season to allow sufficient spin-up of personnel and computing resources while at the same time limiting the commitment of same. The ARPS will also be run during quiescent period to evaluate the prediction of basic parameters such as surface temperature.

Finally, CAPS has embarked on a 3-year research project with American Airlines to evaluate the feasibility of small-scale NWP in airline operations, with specific emphasis on hub airports and selected high traffic routes. This project is affectionately known as "Hub-CAPS!"

7. ACKNOWLEDGMENTS

This research was supported by the Center for Analysis and Prediction of Storms (CAPS) at the University of Oklahoma. CAPS is funded by Grant ATM91-20009 from the National Science Foundation, and by a supplemental grant through the NSF from the Federal Aviation Administration. Computer resources were provided by the Pittsburgh Supercomputing Center, which is also sponsored by the NSF. The authors gratefully acknowledge Sue Weygandt for drafting the figures, and express sincere appreciation to their colleagues at the Norman National Weather Service Forecast Office, the NOAA National Severe Storms Laboratory, and the NOAA Storm Prediction Center.

8. REFERENCES

Albers, S., 1995: The LAPS wind analysis. Weather and Forecasting, 10, 342-352.

Brewster, K., F. Carr, N. Lin, J. Straka, and J. Krause, 1994: A local analysis and prediction system for initializing realtime convective-scale models. Preprints, 10th Conf. on Num. Wea. Pred., 18-22 July, Amer. Meteor. Soc., Portland, OR, 596-598.

Brewster, K., S. Albers, J. Carr, and M. Xue, 1995: Initializing a nonhydrostatic forecast model using WSR-88D data and OLAPS. Preprints, 27th Conf. on Radar Meteor., 9-13 October, Amer. Meteor. Soc., Vail, CO.

Brooks, H.E., C.A. Doswell III, and L.J. Wicker, 1993: STORMTIPE: A Forecasting experiment using a three-dimensional cloud model. Wea. and Forecasting., 8, 352-362.

Droegemeier, K.K., M. Xue, K. Johnson, M. O'Keefe, A. Sawdey, G. Sabot, S. Wholey, N.T. Lin, and K. Mills, 1995: Weather prediction: A scalable storm-scale model. Chapter 3 (p. 45-92) in High Performance Computing, G. Sabot (Ed.), Addison-Wesley, Reading, Massachusetts, 246pp.

Janish, P.R., K.K. Droegemeier, M. Xue, K. Brewster, and J. Levit, 1994: Evaluation of the Advanced Regional Prediction System (ARPS) for storm-scale operational forecasting. Preprints, 14th Conf. on Wea. Analysis and Forecasting, 15-20 January, Amer. Meteor. Soc., Dallas, TX, 224-229.

Johnson, K.W., J. Bauer, G.A. Riccardi, K.K. Droegemeier, and M. Xue, 1994: Distributed processing of a regional prediction model. Mon. Wea. Rev., 122, 2558-2572.

McGinley, J.A., 1995: Opportunities for high resolution data analysis, prediction, and product dissemination within the local weather office. Preprints, 14th Conf. on Weather Analysis and Forecasting, 15-20 January, Dallas, TX, Amer. Meteor. Soc., 478-485.

Rasmussen, E.N., J.M. Straka, R. Davies-Jones, C.A. Doswell III, F.H. Carr, M.D. Eilts, and D.R. MacGorman, 1994: Verification of the Origins of Rotation in Tornadoes Experiment (VORTEX). Bull. Amer. Meteor. Soc., 75, 995-1005.

Xue, M., K. K. Droegemeier, V. Wong, A. Shapiro, and K. Brewster, 1995: ARPS Version 4.0 User's Guide. Center for Analysis and Prediction of Storms, Univ. of Oklahoma, 380pp. [Available from CAPS, 100 East Boyd, Room 1110, Norman, OK, 73019.]

Xue, M., K. Brewster, F. Carr, K. Droegemeier, V. Wong, Y. Liu, A. Sathye, G. Bassett, P. Janish, J. Levit and P. Bothwell, 1996: Realtime numerical prediction of storm-scale weather during VORTEX '95, Part II: Operations summary and example predictions. Preprints, 18th Conf. on Severe Local Storms, 19-23 Feb., Amer. Meteor. Soc., San Francisco, CA. This volume.
